AEROLEAVES & SOLAR PETALS - POWERING A GREENER TOMORROW

---

The Aeroleaf® is a patented micro wind turbine composed of a double blade with a vertical axis in the form of a leaf and a synchronous micro-generator with permanent magnets.

Proprietary technology utilising an electronic regulation card embedded in each leaf for a maximum efficiency.

The rotation of the Aeroleaf® generates no noise due to their direct drive mechanism, without belt or gear, particularly adapted to capture the weakest through to more turbulent winds.

They can be installed anywhere, on a roof, a terrace or a pylon.

The Aeroleaf® exploits from the weakest of winds to provide Clean "Green" and sustainable Energy.

Light and almost without inertia, the Aeroleaf® catches the wind at 360°, potentiating diffuse wind energies.

These elements generate an alternating current, to allow for the addition of each Aeroleaf® power output, it is electronically switched to DC prior to the final AC generation.

Conversely, if the wind is too strong, an electromagnetic brake will be triggered to maintain the spin of the Aeroleaf in its safe operating zone and avoid any damage.

The Aeroleaf® has a starting threshold lowered to 2.5 m/s of wind for increased production ± 300 days/year. A technology that capitalizes Watts to make kiloWatts.

The Micro Generator designed by NWW is doubly protected by a casting and a bulb which surrounds it to protect from the most aggressive environments including rain, sand, snow, various forms of pollution and salty air.

1,05 M Aeroleaf® height + Flange

0,55 M Minimum distance between 2 hybrid Aeroleafs

16,5 kg Aeroleaf® weight with petal

12 Minimum number of v to purchase

< 2,5 m/s (9 km/h) Starting speed

163 W Rated power by Aeroleaf®

36 W Solar Petal Power

0,295m2 Photovoltaic surface

43 m/s continuously (155 km/h)

50 m/s in gusts (180 km/h) Maximum Wind Resistance

300 W Installed Power

48V Required Voltage

850 Max RPM

230 V Output Voltage of solar and wind inverters

New World Wind additionally offers a high performance photovoltaic SolarPetal®  adding a second complimentary source of power to the Aeroleaf® .

The SolarPetal® is positioned at the bottom of each leaf and provides up to 36 W to be added to the 300 W from the Aeroleaf® forming Hybrid structures.

The Aeroleaf® is designed to be elegant and engineered to marginally increase the speed of surrounding wind and optimises the production of energy from the Aeroleaf®.

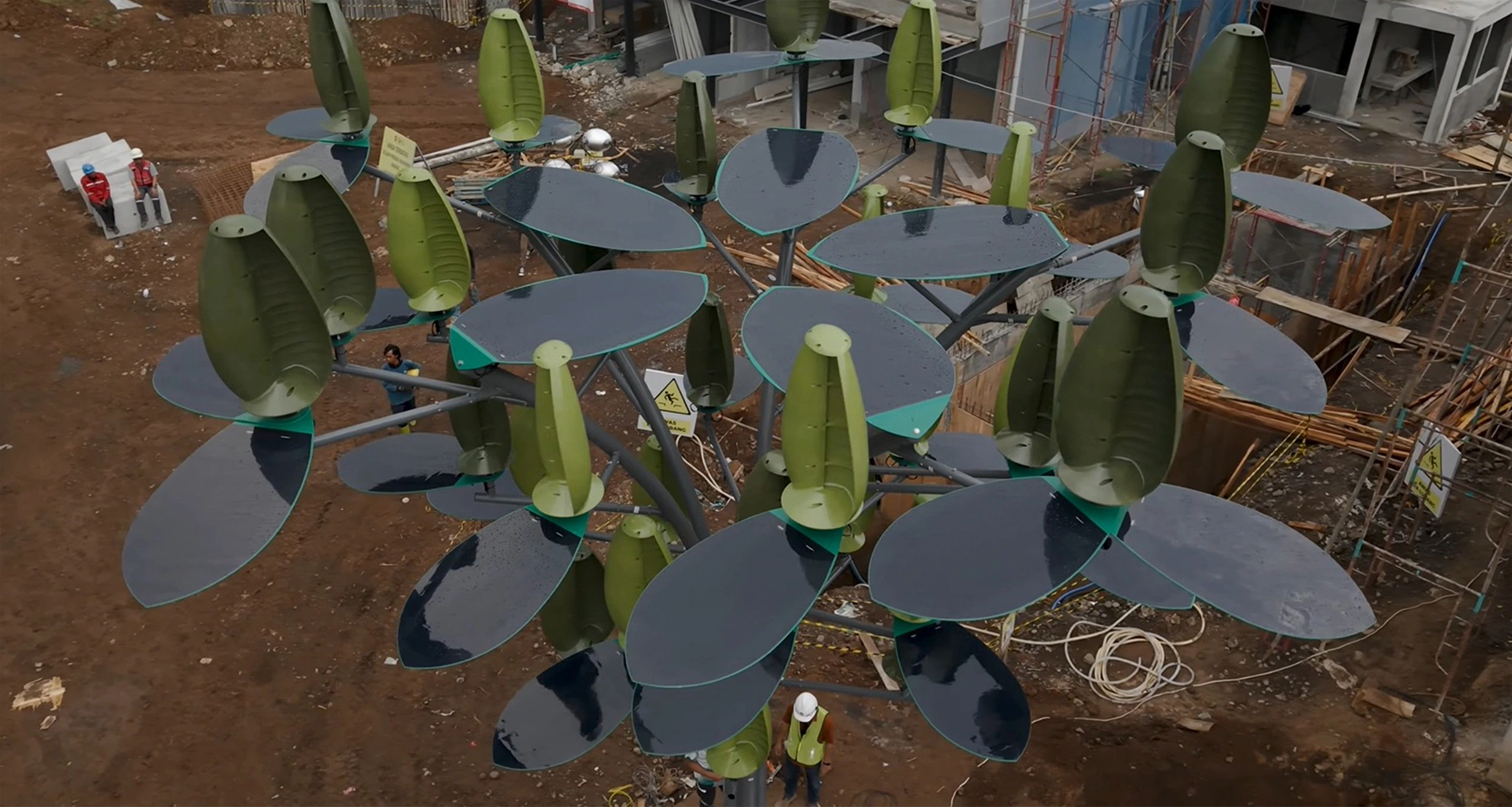

Hybrid Aeroleaf® structures with SolarPetal®s can be individually deployed on rooftops, terraces, and all forms of support without exemption.

Each Aeroleaf®' will support up to "two" SolarPetal®s.

Each SolarPetal® has 23 cells covering an area of 0.3 m2 i.e Supplying 4,8 m2 of photovoltaic area per Windbush.

The SolarPetal® is light, thin (800g and 3mm), waterproof and robust.

Given its gradient of 5° from horizontal, the Solar Petal enables an increase of windspeed when getting close to the edge of the Aeroleaf®, improving the efficiency by 5% (Venturi Effect),

This hybrid system increases performance while keeping the solution organic.

1,05 M Aeroleaf® height with petal

0,905 M Petal length

0,582 M Petal width

0,55 M Minimum distance between 2 hybrid Aeroleaf®

17,5 kg Aeroleaf® weight with petal

< 2,5 m/s (9 km/h) Starting speed

163 W Rated power by Aeroleaf®

36 W Solar Petal Power

0,295m2 Photovoltaic surface

43 m/s continuously (155 km/h)

50 m/s in gusts (180 km/h) Maximum Wind Resistance

336 W Installed Power

48 V Required Voltage

230 V Output Voltage of solar and wind inverters

The Hybrid Aeroleaf® is made up of a standard Aeroleaf® and a SolarPetal® at its foot, all developing a Max power of 336 W (300 W for the Aeroleaf + 36 W for the petal).

The Hybrid Aeroleaf® can be installed in line or staggered as on any support capable of absorbing the forces and vibrations transmitted by the rotating leaf, and subject to a distance of 55 cm between 2 Aeroleaf®'s. Each SolarPetal® has 23 cells covering an area of 0.3 m2

i.e Supplying 4,8 m2 of photovoltaic area per WindBush®.

The SolarPetal® is light, thin (800g and 3mm), waterproof and robust.

Given its gradient of 5° from horizontal, the Solar Petal enables an increase of windspeed when getting close to the edge of the Aeroleaf®, improving the efficiency by 5% (Venturi Effect),

This hybrid system increases performance while keeping the solution organic.

1,05 M Aeroleaf height with petal

0,905 M Petal Length

0,582 M Petal Width

0,55 M Minimum distance between 2 hybrid Aeroleaf®

17,5 kg Aeroleaf® weight with petal

< 2,5 m/s (9 km/h) Starting speed

163 W Rated power by Aeroleaf®

36 W Solar Petal Power

0,295m2 Photovoltaic surface

43 m/s continuously (155 km/h)

50 m/s in gusts (180 km/h) Maximum Wind Resistance

336 W Installed Power

48 V Required Voltage

230 V Output Voltage of solar and wind inverters

The Aeroleaf® are sold individually from 12 pieces. They must be mounted in parallel and connected to its electrical cabinet which contains all the

regulatory safety devices as well as a 4x12 V battery pack.

The sizing of the Electrical Cabinet depends on the number of Aeroleaf® installed.

The Aeroleaf® forms an electrical assembly that is easy to deploy, as close as possible to end point uses, and particularly relevant for exploiting diffuse energies without additional structural cost.

The Aeroleaf® core is a Micro Generator developed by NWW is encapsulated in a casting to make it insensitive to the most aggressive environments including rain, sand, snow, various forms of pollution and salty air.

The Aeroleaf® Micro Generator is a patented micro wind turbine composed of a double blade with a vertical axis in a shape of a leaf driving a synchronous micro- generator with permanent magnets.

Each Micro Generator is managed by an Electronic Regulation Card with integrated microprocessor for

maximum efficiency.

Driven in rotation by the blade, without belts or gears, the magnets pass in front of the coils and thus generate an alternating current.

This is immediately rectified in direct current to be able to sum the currents.

The aerodynamic profile is optimised to exploit the weakest winds (from 2.5 m/s of wind) as well as the strongest (up to 43 m/s continuously, 50 m/s in gusts).

300 W Max Power

48V Voltage

850 Max RPM

The Aeroleaf® Micro Generator is a patented micro wind turbine composed of a double blade with a vertical axis in a shape of a leaf driving a synchronous micro- generator with permanent magnets.

Each Micro Generator is managed by an Electronic Regulation Card with integrated microprocessor for

maximum efficiency.

Driven in rotation by the blade, without belts or gears, the magnets pass in front of the coils and thus generate an alternating current.

This is immediately rectified in direct current to be able to sum the currents.

The aerodynamic profile is optimised to exploit the weakest winds (from 2.5 m/s of wind) as well as the strongest (up to 43 m/s continuously, 50 m/s in gusts).

1000 W Max Power

48V Voltage

850 Max RPM
